Synergy is a precision engineered turntable and our first integrated turntable featuring a built-in phono stage with a factory matched moving coil cartridge and premium grade signal cables, combining the finest components from some of the world’s best high-end audio brands. Synergy exemplifies our desire to continue creating world-class audio products and delivering the ultimate vinyl replay experience without compromise.

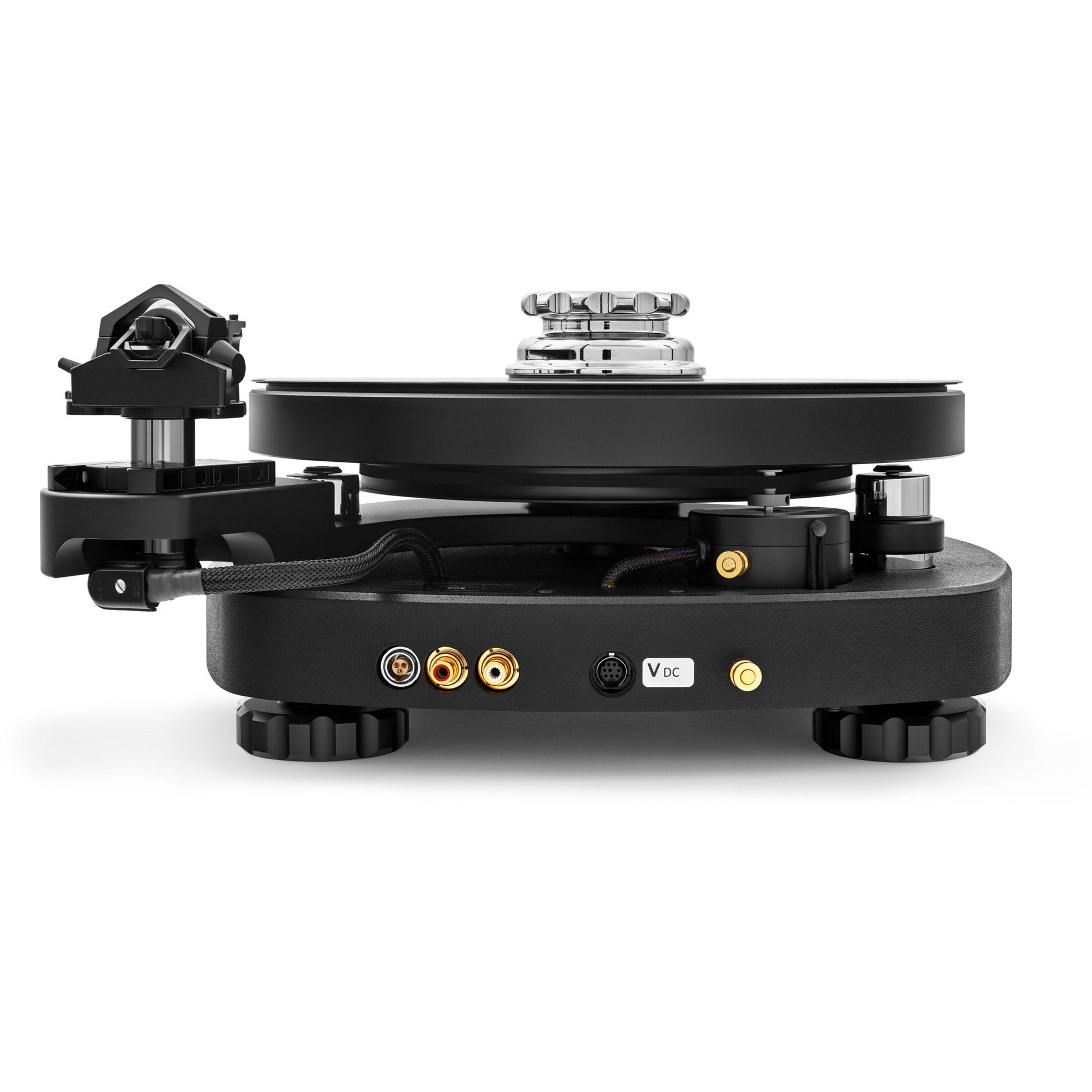

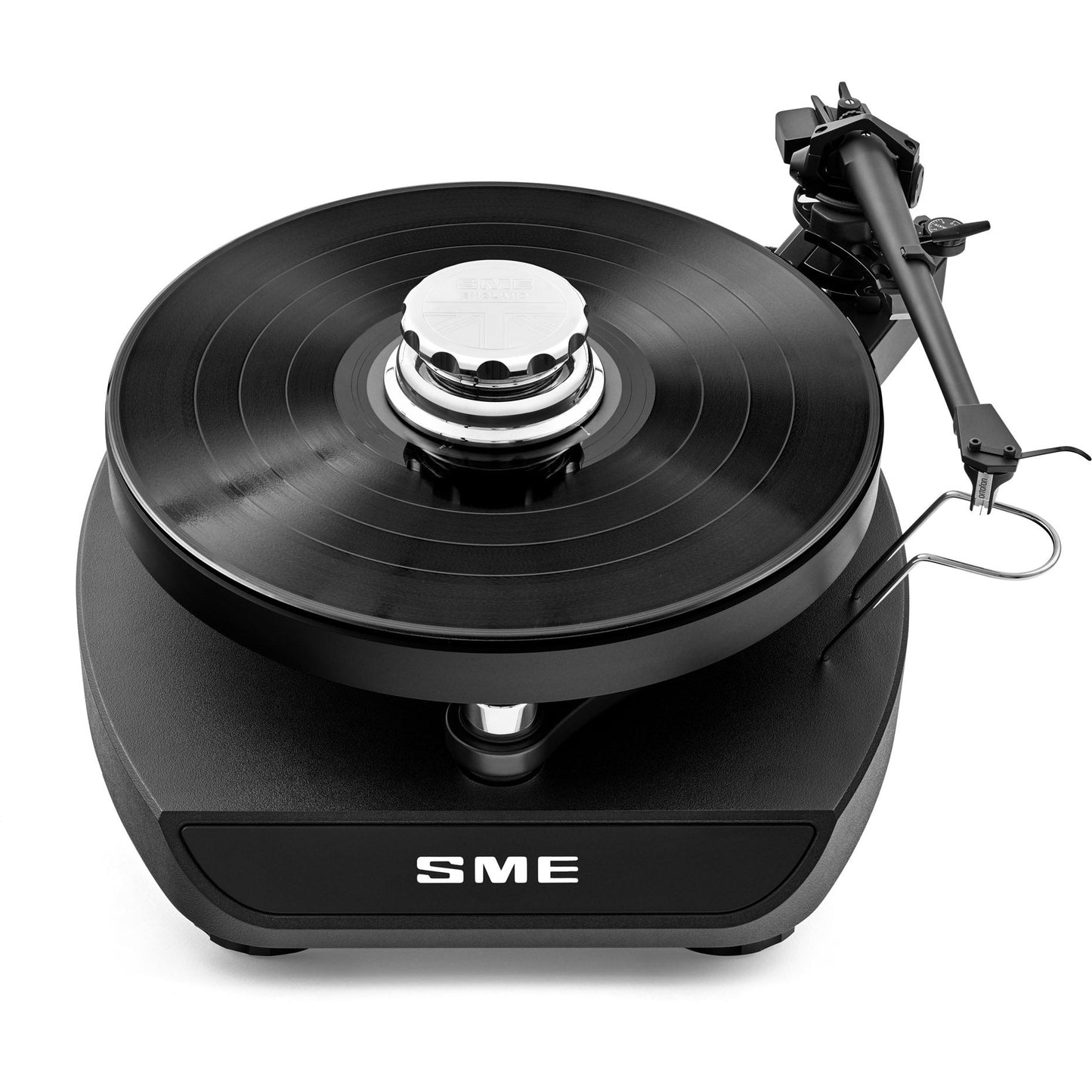

Synergy is a unique, precision-engineered integrated turntable featuring magnesium tonearm, moving coil cartridge and built-in phono stage. Comprising of a completely new turntable design combined with the highly acclaimed SME Series IV tonearm, Ortofon’s ‘exclusive series’ MC Windfeld Ti cartridge and a specially designed phono stage by NAGRA, all coupled with mono crystal silver wire by Crystal Cable, Synergy is a fully integrated turntable unit that is factory configured requiring minimal user set-up. Synergy’s design is compact, sleek, modern and instantly recognisable as SME. Incorporating precision engineered components, high attention to detail and the craftsmanship that SME is globally renowned for, above all Synergy delivers an extraordinary vinyl listening musical experience.
• Natural, Open and Dynamic Sound
• High Mass and Small Footprint
• Close Tolerance Precision Bearing
• Isolated Suspension
• Precision Magnesium Tonearm
• Crystal Cable Audio Lead and Internal Wiring
• Nagra Built-In Phono Stage, Fully Adjustable
• Ortofon MC Windfeld Ti Cartridge
• Factory Configured with Minimal Set Up
The electronic control unit uses a high-performance microprocessor, optimised for motor control. Closed loop speed control is implemented using a proportional plus integral (PI) algorithm. Speed ranges are 33.3, 45 & 78 rpm, with fine pitch speed adjustment allowing increments/decrements of +/-0.01% of the selected speed.
The electronic control circuitry and power supply unit are housed in an external one-piece CNC machined case. This new design offers complete isolation and support and is the perfect environment for the electronics. Speed selection controls are mounted on the front facia panel with LED indicators.
Based on the renowned SME Series IV, Synergy’s tonearm uses the same unique one-piece pressure die-cast magnesium arm tube. Internally damped to be acoustically inert, it is mounted on a precision yoke housing with 10mm ABEC 3 ball bearing races. This unique SME assembly gives high rigidity and allows the bearings to be critically adjusted before the tonearm is installed to the turntable. The yoke is mounted to the 23mm diameter heat treated, ground and honed steel pillar, with a pair of 17mm ABEC 7 ball bearing races that are widely spaced to resist tilt. The cartridge head shell mounting is precision machined and enamel free to avoid interference resonance. Internal wiring is supplied by specialist high end audio cable manufacturer Crystal Cable.
Fitted and factory set for immediate use, Synergy comes complete with Ortofon’s ‘exclusive series’ MC Windfeld Ti moving coil cartridge. Utilising the company’s SLM (Selective Laser Melting) technology, whereby fine particles of titanium are welded together to create a body-core optimised for overall rigidity and cartridge weight, the MC Windfeld Ti is fitted with Aucurum coils of gold-plated 6NX oxygen free copper. A specially designed cantilever, which holds the company’s Replicant 100 diamond, known for its thin and light profile and extraordinarily large vertical contact surface, completes the package. A low output impedance of 7 ohm and a medium output voltage of 0.2 mV makes this high calibre cartridge the perfect partner for Synergy’s integrated phono pre-amp.
Housed within Synergy’s main chassis, the ultra-compact phono stage is specially developed for Synergy by NAGRA. The phono stage is 12v with an external Nagra power unit, offering complete separation from other power sources. Utilising premium grade electronic components, the amplification is provided by individually selected and matched bipolar transistors combined with high end quality capacitors and precision MELF (Metal Electrode Leadless Face) resistors. The MC input transformers are designed, engineered and wound in-house by Nagra, benefitting from the company’s unique experience in this precision field. Connected to the tonearm by Crystal Cable, this drastically reduces unwanted interference to the sensitive signal. The NAGRA phono stage comes factory configured, set up and matched with the highly acclaimed Ortofon MC Windfeld Ti cartridge. The built-in phono stage resistor values are fully adjustable should the user want to change the cartridge type at a future date.
Synergy is equipped with a premium grade signal cable from Crystal Cable which is installed inside the tonearm, connected to phono stage and coupled with the cartridge. Pure mono-crystal silver conductors in miniature format. Providing precious metal in its most pure version, lifting the musical performance to a higher level.
Net weight: 24.5 kg (54 lbs)
Shipping weight: 29.5 kg (65 lbs)
Width 370.00 mm
Depth 350.00 mm
Height 178.00 mm
