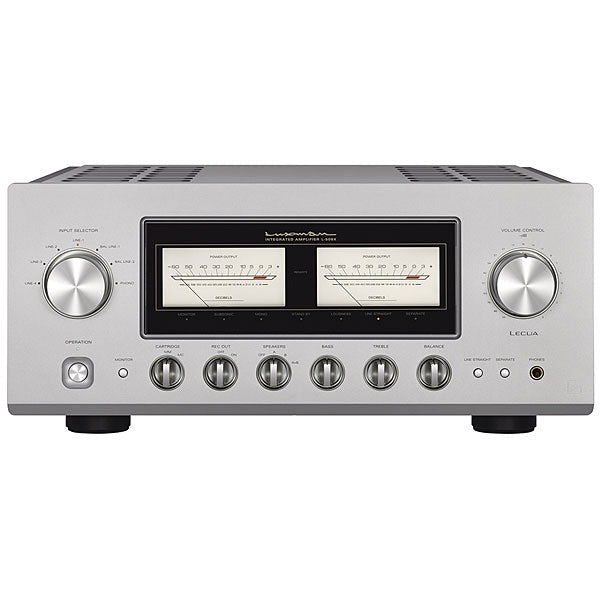

The realisation of a desirable ideal the ultimate refinement of separates in a single unit.
The L-509X integrates the features of both a high quality separate amplifier and a high performance integrated amplifier into one product. The goal of creating an ideal integrated amplifier, initiated by LUXMAN with the launch of the L-509fSE in 2002, has now been advanced with the development of the L-509X. The L-509X integrated amplifier is equipped with many desirable features, such as the New LECUA1000 and a discretely configured buffer circuit in the output stage of the pre-amplifier circuit. LUXMAN’s ODNF (Only Distortion Negative Feedback) original amplifier feedback circuit and a power supply with independent left and right channel blocking capacitors are intrinsic to this design, as well as many components used only in high end models, ensuring high-quality audio reproduction. The design of the L-509X incorporates the cream of LUXMAN's proprietary technologies, breaking new ground and creating the ultimate expression of “separates in a single unit”.
|Rated output||120W + 120W (8Ω),
220W + 220W (4Ω)
|Input sensitivity/input impedance||PHONO (MM): 2.5mV/47kΩ
PHONO (MC): 0.3mV/100Ω
|Output voltage||REC OUT: 180mV, PRE-OUT: 1V|
|Frequency response||PHONO: 20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 100kHz (within -3dB)
|Total harmonic distortion||0.007% or less (8Ω, 1kHz)
0.06% or less (8Ω, 20Hz to 20kHz)
|S/N ratio (IHF-A)||PHONO (MM): 91dB or more
PHONO (MC): 75dB or more
LINE: 105dB or more
|Volume adjustment||New LECUA1000|
|Amplification circuit||ODNF 4.0|
|Output configuration||Bipolar 4-parallel push-pull|
|Max. amount of tone control||BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz
|Power supply||230V~(50Hz) /115V~(60Hz)|
150W (under no signal),
0.5W (at standby)
|External dimensions||440(W) x 193(H) x 463(D) mm
front side knob of 20mm
and rear side terminal of 37mm included in depth
|Net weight||29.3kg (main unit)|
|Accessories||Remote control (RA-17A)
|Speaker terminal Supported Y-lug terminal dimension||Width of part a: 16mm or less
Width of part b: 7mm or more
* Connection may not be performed
depending on the shape of the
