Klipsch Jubilee Floorstanding Speakers

The Jubilee was company founder Paul W. Klipsch's final project. His dream was to create a loudspeaker to satisfy even the most ardent audiophiles. Originally intended to be the successor to the Klipschorn, PWK soon realized it was much more than that.

• New flagship speaker model based on Paul W. Klipsch's final project
• Two-way loudspeaker with advanced acoustic technologies, including a patented horn-loaded vented low frequency enclosure and an all-new horn-loaded compression driver
• Supplied with an active external crossover that maximizes output and adjusts the driver's time delay and phase for true-to-life sound
• Klipsch Heritage speakers are designed and assembled in the USA
• Fully horn-loaded speaker design delivers very high efficiency
• Book-matched wood veneer makes for a perfectly matching speaker pair

A New Flagship

The Klipsch Jubilee is a fully-horn loaded two-way loudspeaker, designed to deliver the ultimate listening experience. The Klipsch Jubilee incorporates the latest in acoustic developments to accomplish this feat, featuring a patented horn-loaded vented low frequency enclosure and an all-new horn-loaded compression driver. Each component is specifically optimised to operate in its individual pass-band, resulting in the Klipsch Jubilee being one of the most efficient commercially available loudspeakers. Higher efficiency yields greater acoustic power, which is generated with considerably less effort. The result is the cleanest, most dynamic sound possible throughout the entire musical range.

Feel The Music

The patented low frequency enclosure of the Klipsch Jubilee is designed to provide magnificent presence, by leveraging the efficiencies of both horn-loaded and vented systems. The typical vented system already increases the efficiency and sensitivity for extended low frequency performance. Horn-loading this system allows the Klipsch Jubilee to be a staggering 10 to 20 times more efficient than a conventional loudspeaker. This results in unrivalled low frequency performance, maximising output while minimising distortion, for dynamic and clean bass

The Ultimate Soundstage

The Klipsch Jubilee features an all-new large format compression driver with a 7” axiperiodic titanium diaphragm. The single, large diameter diaphragm provides very wide bandwidth performance, eliminating the need for a mid-range driver – true to Paul Klipsch’s original Klipsch Jubilee design. This wide bandwidth design lowers the crossover point below the critical vocal range for seamless clarity and accuracy. The axiperiodic design delivers a smooth response, while still maximising output and minimising distortion for effortless performance.

The Complete Package

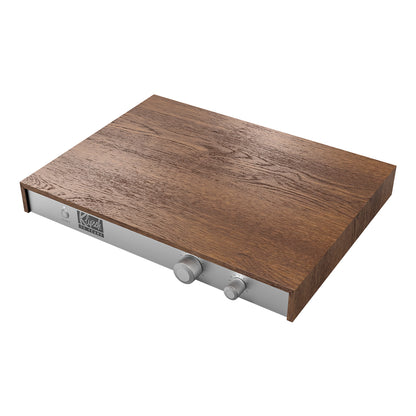

The Klipsch Jubilee features an external active DSP crossover network to ensure the highest degree of accurate reproduction of sound. The DSP network adjusts the phase and time delay of each acoustic component to eliminate acoustic phase cancellations and maximise output in the crossover region for truer-to-life sound. The DSP network also provides the necessary EQ and gain adjustment to blend the two acoustic components together seamlessly. Beautifully designed for shelf or rack mount applications, the Klipsch Jubilee active crossover also features adjustable low frequency and high frequency trim levels to ensure the ultimate listening experience tailored to your room and personal taste.

Made In the USA

Klipsch has always recognised the unique and critical role of a loudspeaker’s cabinet in the sound reproduction process. From the craftsmen in Hope, AR, to the engineers in Indianapolis, IN, Klipsch have always put an extraordinary emphasis on cabinet design.

Every pair of Heritage series loudspeakers is also grain-matched, using wood veneer panels that come from the same timber. The speakers then move seamlessly together through the factory, and each finished product is inspected and labelled with sequential serial numbers for perfectly matched pairs.

Specs

• Frequency Response +1.75 / -3dB
  18 - 20000 Hz
• Speaker Sensitivity (@ 2.83V / 1m)
  (HF) 110 dB
• Power Handling
  (HF) 100 / 400 W
• Maximum SPL
  125 dB
• Speaker Impedance
  (HF) 16 Ω
• Minimum Speaker Impedance
  (HF) 7.6 Ω
• Crossover Frequency
  340 Hz
• High-Frequency Driver
  7" K-693 Titanium Diaphragm Compression Driver with 5” Voice Coil
• Low-Range Driver
  Dual 12" K-283 Fiber-Composite Cone Woofers
• Low-Range Driver Horn
  Patented Horn-Loaded Vented Enclosure
• Speaker Inputs
  5-Way Binding Posts
• Enclosure Material
  MDF
• Dimensions (W x H x D)
  1270 x 1752.6 x 762 mm
• Weight
  185.06 kg
