ZEN mk III
The ZEN mk III Music Server Series continues Innuos`s pursuit of bringing digital music to new heights. Learning from previous experience and success of the ZENith MkII SE the mk III family benefits from trickle down technology.
The all new Innuos ZEN mk III is for music enthusiasts who want to enjoy their large music libraries with a dedicated server delivering audiophile quality, the Innuos ZEN mk III represents new value for money in digital audio performance.
The ZEN mk III new features are:
⦁ Dual Linear Power Supply – With ultra-low noise regulators and Nichicon Capacitors.
⦁ Custom made motherboard - With improved EMI treatment.
⦁ Asymmetrical isolation feet - Derived from the successful design implementation on the ZENith SE.

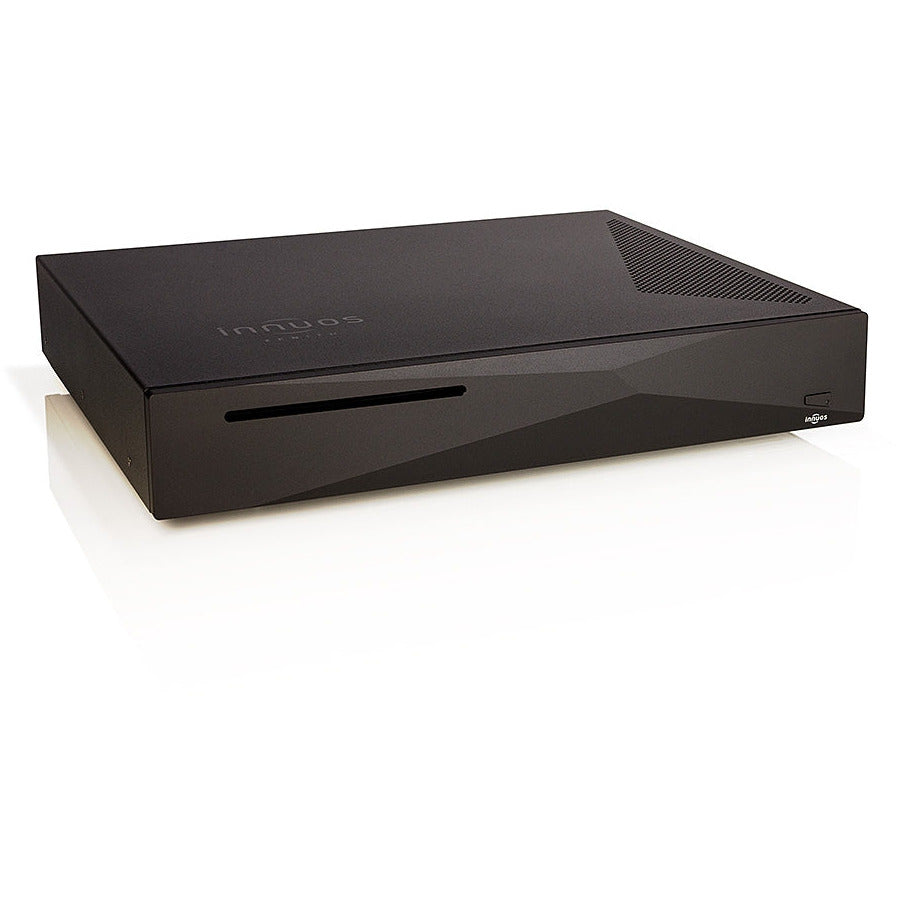

⦁ Available in Black or Silver finish
InnuOS Features:
⦁ Bit-Perfect Ripping
⦁ Using AccurateStream technology, extract every last bit of your CDs into WAV or FLAC files.
⦁ Automatic CD Ripping
⦁ Just pop-in a CD! innuOS will automatically get full album data and cover from multiple online databases, rip your CD and eject when done.
⦁ Assisted CD Ripping
⦁ Assisted CD Ripping allows you to see and edit all the album data and cover obtained from the online databases before you rip the CD. Great for Classical Music!
⦁ Quiet Mode
⦁ Love to listen to music whilst ripping your CDs and want absolute silence? Just engage Quiet Mode for slowing down ripping, making it much quieter and with less vibration.
⦁ Offline Ripping
⦁ CDs can be ripped without internet connection. When connected, album data and cover for all offline ripped CDs will be obtained with a simple click.
Powered by innuOS:
Innuos`s unique innuOS operating system was developed in house and allows complete Music Library management from your tablet, smartphone, or computer. ripping CDs, importing music, editing album data (including covers), playing, streaming and backing up your music library can all be performed from the comfort of your smart device.
The innuOS operating system also contains many intelligent features to help organise your Music Library, such as innuos`s rule based music import engine and Assisted CD ripping mode.
The innuOS operating system can also run in Roon Core or Roon Bridge mode.
AUDIO OUTPUTS |
|
Digital Output | USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA |
Dedicated Ethernet Streamer Port | |

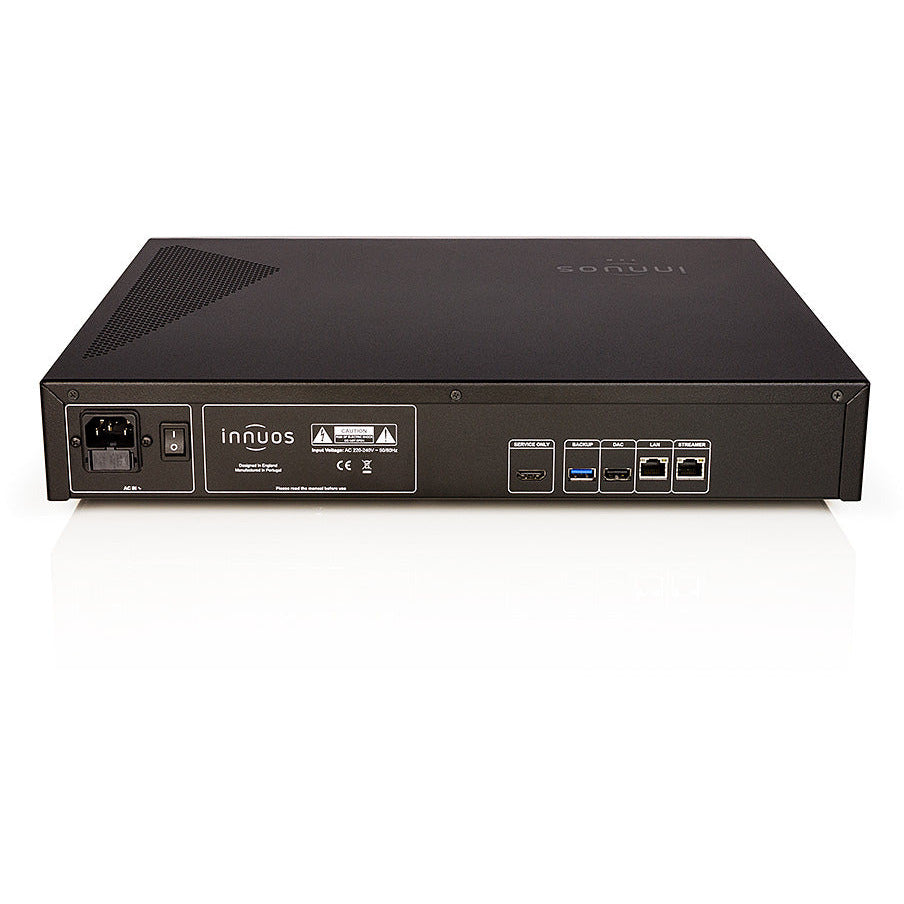

CONNECTIVITY |
|
Ethernet | 2 x rear panel RJ45 – Bridged Gigabit Ethernet |
USB | 1x USB 2.0 (DAC), 1x USB 3.0 (Backup) |
FORMATS |
|
CD Formats | Red Book |
Disc Compatibility | CD, CD-R, CD-RW |
Audio format for stored CDs | FLAC (zero compression), WAV |
Audio Formats Supported for streaming and playing | WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA (with supported DACs) |
SAMPLE RATES |
|
Sample Rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs |
Bit Depths | 16bit, 24bit, 32bit |
USER CONTROL INTERFACES |
|
Web Interface | Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers |
Mobile | App for iPhone/iPad, Android and Windows 10 |
HARDWARE |
|
CD/DVD drive | TEAC Slot-loading drive |
Hard Drive | 1TB WD Red HDD |
CPU | Intel Quad Core N4200 |
Memory | 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback) |
STREAMING AND CD STORAGE |
|
UPnP/DLNA | Integrated UPnP Server |
Streaming Services | Qobuz, Spotify Connect, Tidal, Internet Radio |
Roon Compatibility | Roon Core and Roon Bridge |
Average CD Storage Time | 5 minutes |
CD Metadata | FreeDB, MusicBrainz, Discogs, GD3 |
Compatible Music Systems | Sonos Multi-room Wireless Music System |
DLNA/UPnP compatible devices | |
USB DACs complying to USB Audio Class 2 | |
USB DACs supporting DSD over DoP protocol | |
Selected USB DACs supporting Native DSD | |
REQUIREMENTS |
|
Network | Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates |
Network router with at least one available ethernet port | |
Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal | |
Recommended App (USB Connection Only) | iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10) |
POWER |
|
Mains Supply | 230V AC / 115V AC - Internal Dual-Linear Power Supply |
Power Consumption | 12W when idle, 15W peak |
PHYSICAL |
|
Dimensions | 70 x 420 x 320 mm (H x W x D) |
Weight | 9 Kg |
In the box | Innuos ZEN Mk3 1TB Music Server |
Mains Cable | |
2m Ethernet Cable | |
Getting Started leaflet |
