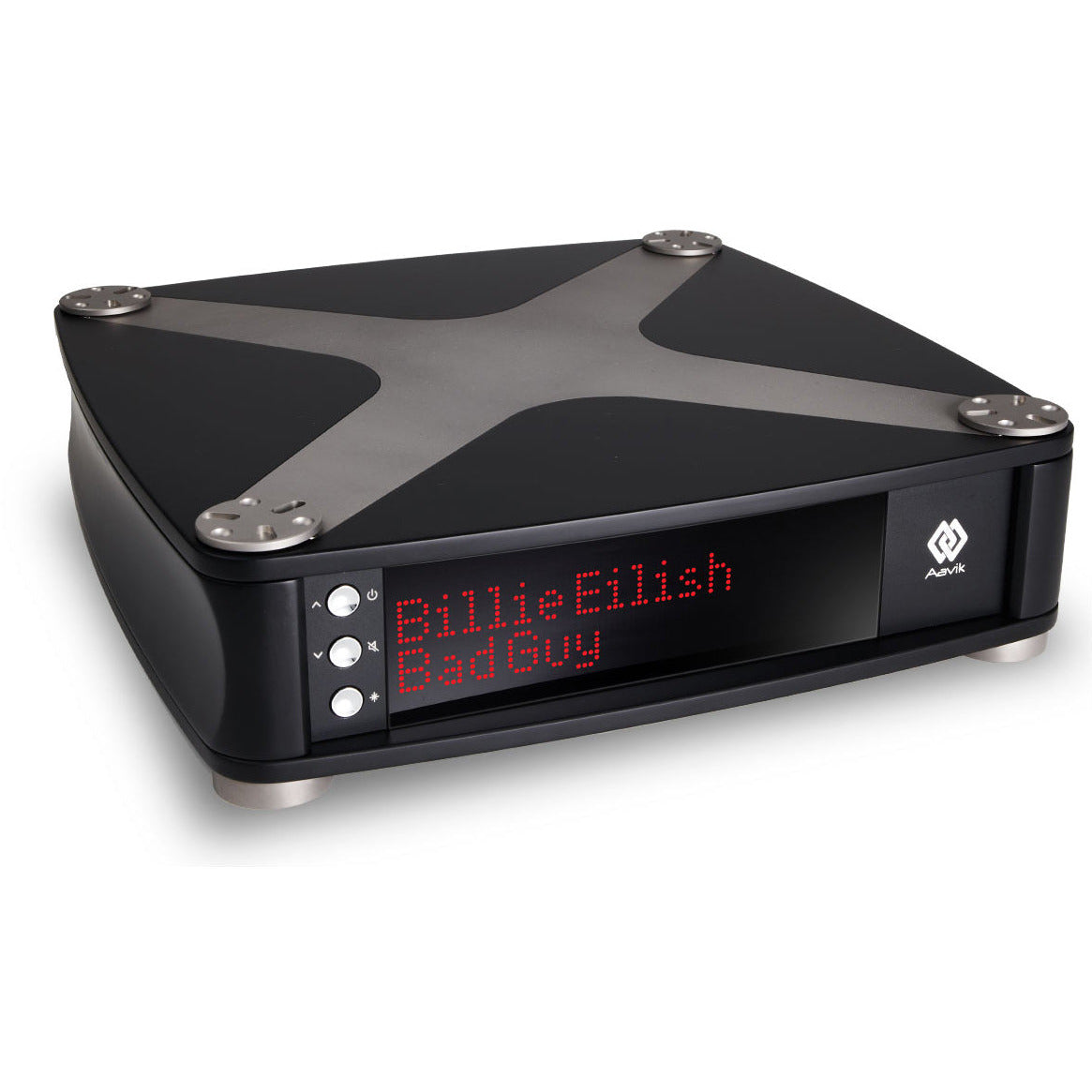

The Aavik phono stage has been developed to tease out the natural flow of music that is so typical of a vinyl-based sound source. The extensive research Aavik invested in gaining a deeper understanding of the major turntable and cartridge challenges shaped the platform for the engineering solutions embedded in the Aavik phono stage. The key strength of the Aavik RIAA is the sonic isolation of the ultra-low signals that emanate from the vinyl source, and the filtering out of any disturbing outside noise and vibration.
THE AAVIK RIAA / PHONO STAGE – LIVELY AND VIVID PERFORMANCE
The Aavik RIAA section is based on a discrete, floating, balanced, ultra-low noise bipolar input circuit. The topology of a moving coil cartridge is a floating, balanced signal generator. Aavik has kept this topology throughout the phono stage. The input circuitry allows use of ultra-low noise bipolar transistors. By paralleling several transistor pairs, Aavik has created an absolutely quiet input section. The phono stage has 62 dB gain, and the cartridge loading is adjustable from 50 Ohm to 5 kOhm. The S/N ratio1) is 94 dB measured at 1 kHz.
The Aavik phono section will let you explore the amazing details and musical depths of your vinyl collection.
1) S/N ratio: Signal-to-Noise ratio
CARTRIDGE LOADING ADJUSTMENT – A PERFECT MATCH FOR ANY MC
To get the highest efficiency from your turntable pick-up, the impedance can precisely be adjusted according to the individual MC cartridge.
SEPARATE UNITS – NO COMPROMISE
The decision to build separate units reflects Aavik’s intent of space management without any sonic compromise. Allowing sufficient space for each segment has also influenced the integration of a high-grade power supply with a huge capacity and paved the way for an effective cooling design.
By separating the individual units and redesigning them in a totally isolated fashion, the Aavik series has gained in dynamic momentum and a more expansive sound.
SCANDINAVIAN DESIGN WITH AN INTERNATIONAL TWIST
The Aavik design is Scandinavian understatement and expresses simplicity and minimalism featuring only a few buttons for logical operation. The multifunctional main knob allows to navigate and control the various functions. A distinguishing design feature of the new Aavik series is a huge red display, which makes it easy to read all details of the selected operational settings.
A CABINET WITH EXCELLENT SONIC QUALITIES
The cabinet design represents a brand new Aavik characteristic. The testing of new circuits and electronic components is often done without the enclosing cabinet. The disturbing sonic influence, which emanates from the material the cabinet is made of - mostly aluminium - results from its mechanical resonance. To eliminate this sonic distortion, the challenge was to minimize the use of aluminium in the cabinet to the absolute minimum that is unavoidable to ensure sufficient cooling. Aavik began testing various materials and designed an innovative natural-based composite material, which reduces the mechanical influence, particularly the hysteresis. The sonic result is distinctly audible and reflects a further prominent cornerstone in Aavik’s quest for the ultimate music experience.
SHAPING – BUILT LIKE AN INSTRUMENT
Aavik’s untiring endeavour to unlock further untapped sonic potentials to advance the quality of the listener’s musical experience, prompted our audio engineers to look into the design and construction of musical instruments - both in terms of shape as well as choice of material. A combination of the natural-based composite material, the contours and the ratio of the sizes can impact and define the tone. Too much damping kills the dynamics, whereas metallic resonances generate a bright and peaky sound – Aavik’s newly engineered enclosure offers the best of both worlds: an authentic sound that is warm, harmonious and powerful, yet, at the same time, so crisp and refined that it highlights every single detail in the music.
PREMIUM TECHNOLOGIES FOR UNCONSTRAINED SIGNAL FLOW

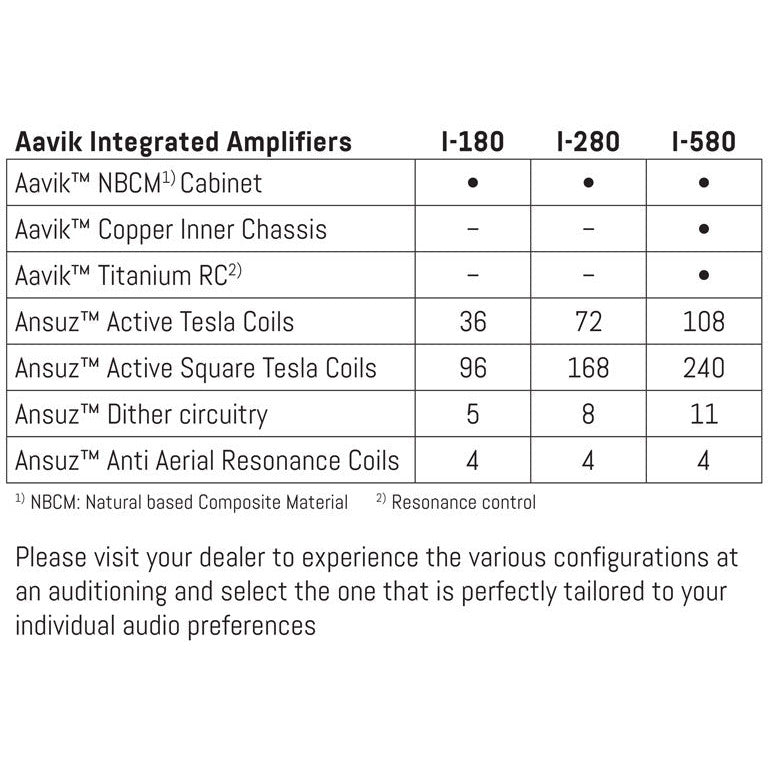

For our new Aavik series, we could heavily draw on the experience and extensive R&D of our sister company, Ansuz-Acoustics™. We employed their groundbreaking, effective noise cancelling technologies and fitted all members of the new Aavik series with Tesla coils, dither circuitry and anti aerial resonance coils. These innovative technologies are geared towards paving the way for an absolutely unconstrained signal flow.
Aavik has also prepared the top and bottom surfaces on all Aavik series to best accommodate Ansuz Darkz™, which represent the most effective way of preventing mechanical vibrations.
RESONANT MODE POWER SUPPLY – QUIET BUT EXTREMELY POWERFUL
The new Aavik series is designed to ensure massive power resources with ultra-low noise. Unlike the square waves used by conventional switch mode power supplies, the new Aavik series boast a resonant mode design which is principally driven by sine waves.
When more power is needed, the operating frequency increases, which, in turn, has the advantage that the power density also increases, thus allowing higher peak power when required by the music.
The noise floor in the raw power supply is extremely low but could be even further lowered by the ultra-low noise regulators supplying the different parts of the circuit. The noise of these regulators is measured in a few microvolts respectively nanovolts, which is significantly lower than the noise level of conventional regulators.
