Audio Technica

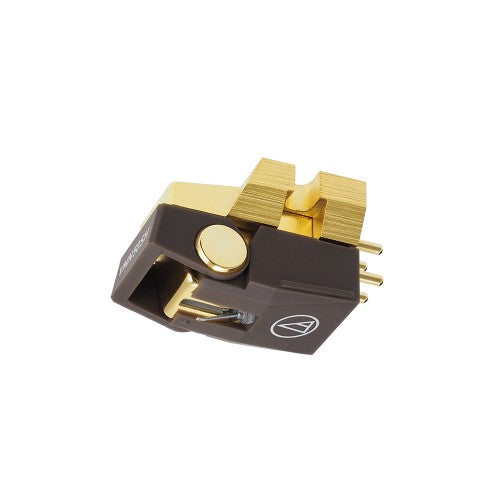

Audio Technica VM750SH MM Cartridge

Audio Technica VM750SH MM Cartridge

Why Buy From Kronos AV? Here are just a few reasons...
Read More
Regular price £369.99
Regular price Sale price £369.99
Sale Sold out
VAT included.

Part Exchange / Trade In Quote?

Fitted with the Shibata stylus, which was developed for playing 4 channel vinyl records that demand high-frequency reproduction capabilities during playback. Not only for high-frequencies, it is also ideal for reproducing rich mid- and low-frequencies.

  • Aluminium tapered cantilever
  • Para-toroidal coils improve generating efficiency
  • Centre shield plate between the left and right channels reduces crosstalk
  • Die-cast aluminium alloy housing reduces vibration and adds a natural electrical shield
  • Shibata profile diamond stylus
  • VM type dual magnet system
  • Para-toroidal coils improve generating efficiency
  • Aluminium tapered cantilever
  • Centre shield plate between stereo channels
  • Die-cast aluminium alloy housing reduces vibration
Specs
Type VM Type
Mounting 1/2” centres
Frequency Response 20 - 27,000Hz
Channel Separation 30dB (1kHz)
Output Channel Balance 1.0dB (1kHz)
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle 23˚
Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard)
Stylus Shape Shibata
Stylus Size 0.26 x 2.7 mil
Stylus Construction Nude Square Shank
Cantilever Aluminium Tapered Pipe
Coil Impedance 2,700Ω (1kHz)
Static Compliance 40 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance 47,000Ω
Recommended Load Capacitance 100 – 200pF
Weight 8.0g
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus VMN50SH
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
