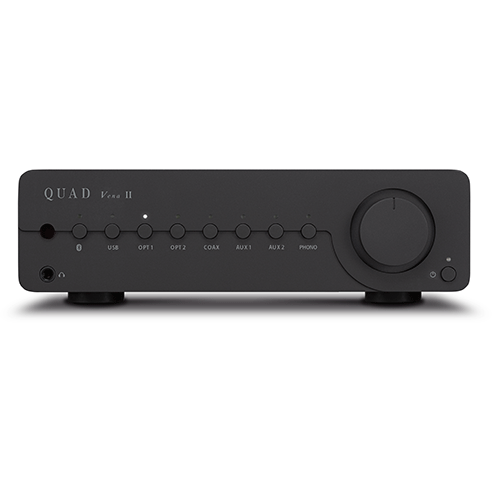

Preamplifier Section | |

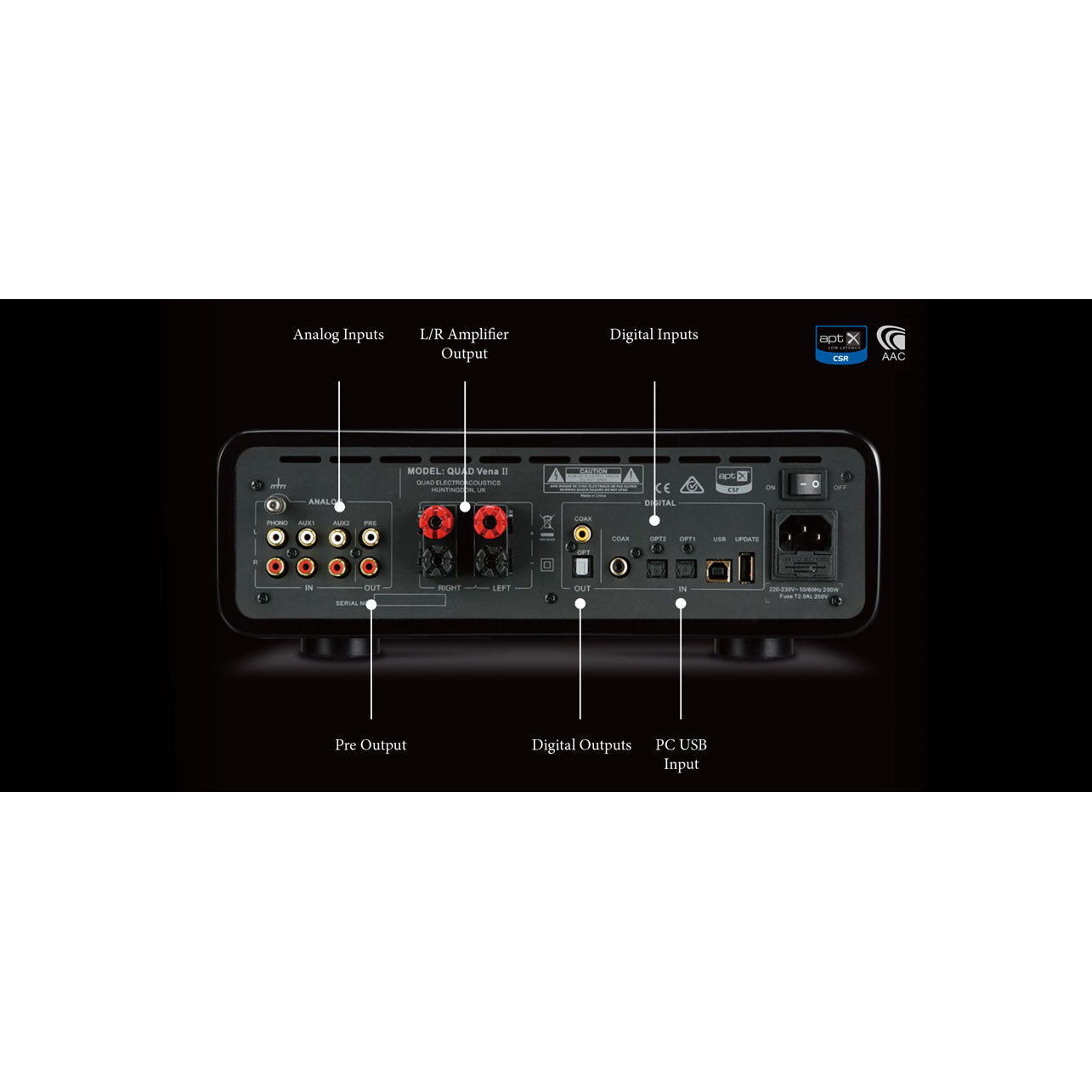

Analogue Inputs |
2x line-level RCA / 1x MM phono |
Analogue Outputs | 1 x RCA (pre-out) |
Analogue Input sensitivity | 450mV (line-level) / 4.1mV (MM phono) |
Analogue Input impedance | 10kΩ (line-level); 47kΩ / 100pF (MM phono) |
Frequency Response | 20Hz-20kHz (+/- 0.5dB) |
Total Harmonic Distorion (THD) | < 0.002% |
Signal-to-Noise | > 110dB (A-weighted) |
Power Amplifier Section | |
Power Output | 2x 45W RMS (8Ω) / 2x 65W RMS (4Ω) |
Frequency Response | 20Hz-20kHz (+/- 0.5dB) |
Total Harmonic Distortion (THD) | < 0.005% (30W, 8Ω) |
Signal-to-Noise | > 108dB (A-weighted) |
Digital Section | |
DAC Chip | ESS Sabre32 ES9018K2M |
Digital Inputs | 2x optical; 1x coaxial; 1x USB Type A; aptX Bluetooth |
Max Sampling Frequency – USB | 384kHz PCM; DSD256 |
Max Sampling Frequency – Optical/Coaxial | 192kHz PCM |
Digital Outputs | 1x coaxial; 1x optical |

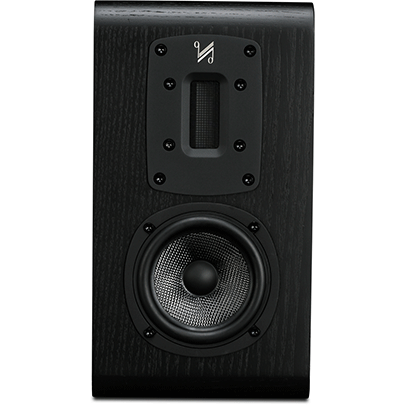

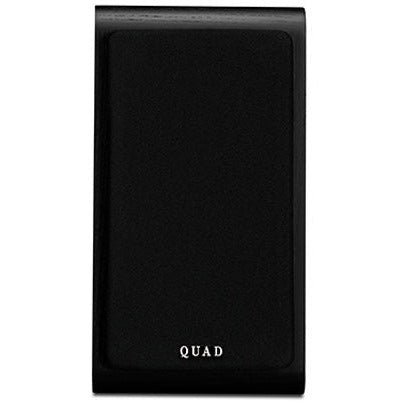

Speaker Specs
General description | 2-way bookshelf speaker |
Enclosure type | Vented box loudspeaker |
Transducer complement | 2-way |
Bass / Mid driver | 4"(100mm)woven Kevlar® cone |
Treble driver | 45 x 12mm true ribbon |
Sensitivity (2.83V @ 1m) | 84dB |
Recommended amplifier power | 25-150W |
Nominal impedance | 8Ω Compatible |
Minimum impedance | 4.2Ω |
Frequency response (+/-3dB) | 58Hz ~ 20kHz |
Bass extension (-6dB) | 55Hz |
Crossover frequency | 3.2kHz |
Cabinet Volume (in litres) | 6.7L |
Dimensions (H x W D) | 285 x 156 x (240 + 30) mm |
Weight | 5.2kg |
