Bel Canto

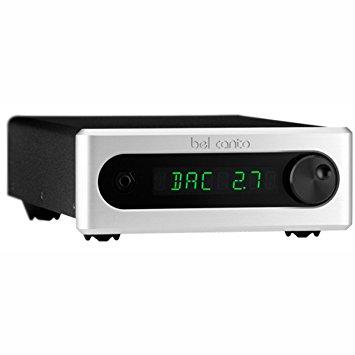

Bel Canto E.One DAC 2.7 DAC
Bel Canto E.One DAC 2.7 DAC
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
DAC 2.7 Control Preamp
Incredible audio performance, features, and flexibility, the DAC2.7 is musically open, detailed, and natural sounding.
- Class Leading 124dB Dynamic Range
- 24 Bit Volume Control
- 24/192 Asynchronous USB2.0
- Analog Input

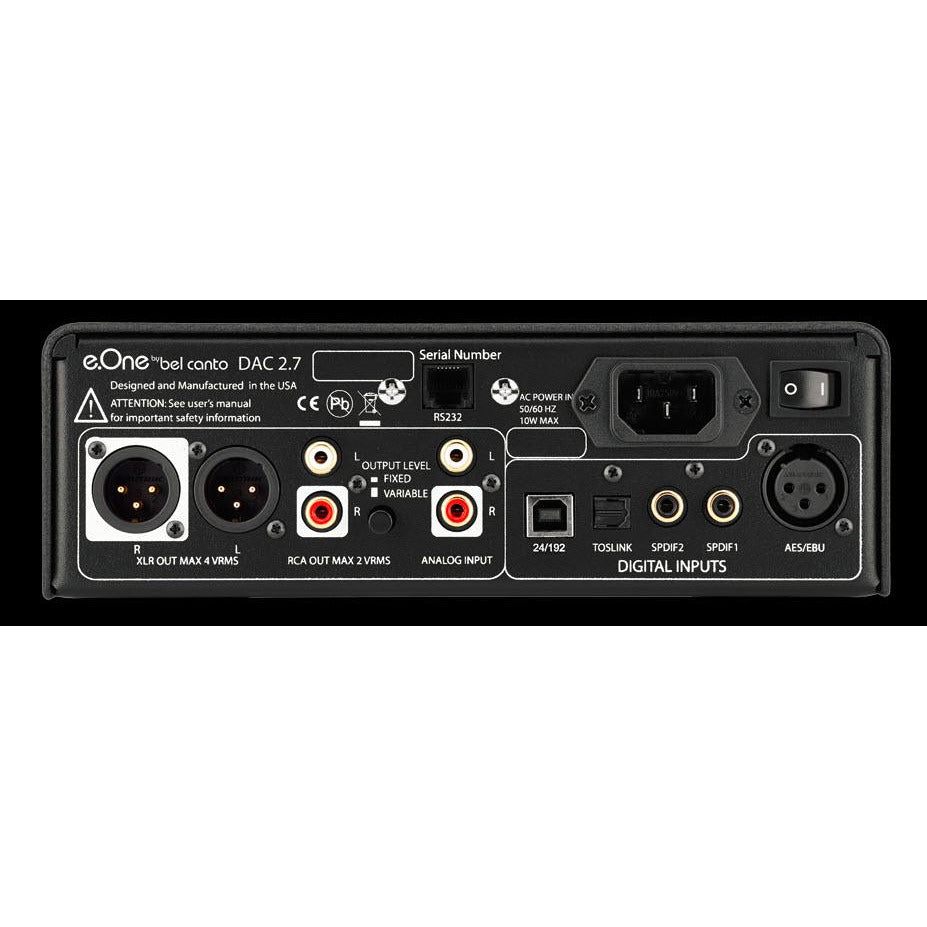

- 5 Asynchronous Digital Inputs
- High Current Headphone Output Driver
- Remote Control
- Available in Black or Silver Faceplate
- MAC USB 2.0 compatibility and custom Windows USB 2.0 driver
HDR Core is the result of 20+ years of engineering to refine the digital to analog process, comprised of 4 major components: Ultra Low Noise Master Clocks, Asynchronous Interfaces, Advance Segment PCM1792 DAC and Dual Mode Low-Noise High Efficiency Power Supplies. HDR Core technology is fundamental to every premier Bel Canto product, creating the most realistic, open, and defined musical experience possible.
Built In Headphone Output
This low-impedance, high-output headphone amp circuit has been designed to drive any pair of high quality headphones with pristine clarity. You'll be amazed at the musical depth they bring to your headset.
Simple, Elegant Interface
Designed to be functional and simple, the dual-functioning one knob interface is a joy to use. The programmable 8 character display works with it seamlessly to access all basic functions in a few clicks. The included 36 button infrared remote allows instant command functions and display editing.
Asynchronous USB Input
24/192 Asynchronous input works with the internal dual Ultra Low Noise Femtosecond clocks to provide unprecedented audio sound quality and impact from your computer audio sources.
Reviews
Hi-Fi+ Magazine, Eric Neff, Jan 2017
“There was no aspect of the sonic presentation where I became focused on some flawed nuance. Instead it was simply the joy of a classic musical masterpiece. Immersive and musical, it was an experience we all seek as music lovers.”
Australian Hi Fi, Greg Borrowman, Sept/Oct 2016
“Bel Canto are all about…solid, no-nonsense electronic and mechanical engineering. It’s superbly engineered, inside and out…”
Specs
Digital Section: |
|
Maximum Data Input Rate: | |
24bit Data at 192KS/s: | AES XLR, SPDIF BNC/RCA, TOSLINK, USB |
Master Clock jitter: | 70 femtoseconds RMS, 100Hz-1MHz |
Analog 24/192 DAC Section: |
|
Maximum Output: | 4.4Vrms balanced XLR, 2.2Vrms RCA |
Output Impedance: | 200 ohms balanced XLR, 100 ohms RCA |
Frequency Response: | 20 Hz-20 KHz, +/- 0.5dB |
THD+N: | <0.0015%, 4Vrms balanced out, 1KHz |
Output Noise: | 3.3uVrms A-weighted 20Hz-20KHz |
Dynamic Range: | 124dB A-weighted 20Hz-20KHz |
Analog 24/192 ADC Section: |
|
Maximum Input: | 2.5 Vrms RCA |
Input Impedance: | 12K ohms RCA |
THD+N: | 0.003%, 2.5Vrms in, 1KHz |
Dynamic Range: | 110dB, A-weighted 20Hz-20KHz |
Headphone Section: |
|
Headphone Output Current and Voltage Level: | 300mA peak at 4Vrms |
Maximum Output: | 138mW |
THD+N: | 0.01% 35mW, 1KHz |
Output Noise: | 17uVrms, A-weighted 20Hz-20KHz |
General: |
|
Power Usage On: | 7W |
Power Usage Off: | 0.0W |
Power Requirement: | 100-120VAC, 220-240VAC 50/60 Hz |
Dimensions: | 8.5" W x 12.5" D x 3.5" H (216 mm x 318 mm x 88 mm) |
Weight: | 14lbs. (6.5 kg) |
